View Engineering Files Online
Open CAD, BIM, CNC, 3D Models and Construction Documents directly in your browser.
A professional engineering file viewing and collaboration platform developed by WORLD STEEL.
Open files from the software you already use
Exports from these applications open directly in your browser, no licence needed on the viewing side.
Product names and logos are trademarks of their respective owners. WORLD STEEL is not affiliated with or endorsed by them. Native model files such as RVT, SKP or SLDPRT cannot be opened directly: export IFC, STL, OBJ or PDF from those applications. See the format registry for every format and its status.
Supported Formats
Every format is labelled honestly: viewable now, needs a converter, or storage only.
CAD
BIM
Structural Steel
CNC
Structural Analysis
3D Models
Point Cloud
GIS
Project Management
Documents
Images
Video
Archives
Green = viewable online now · Grey = converter/SDK required, metadata or storage only. See the full format registry →
Built for Engineering Teams
Inspect, measure and share technical files without installing CAD or BIM software.
Smart File Detection
Extension, MIME type, file signature and internal structure are checked to pick the right viewer.

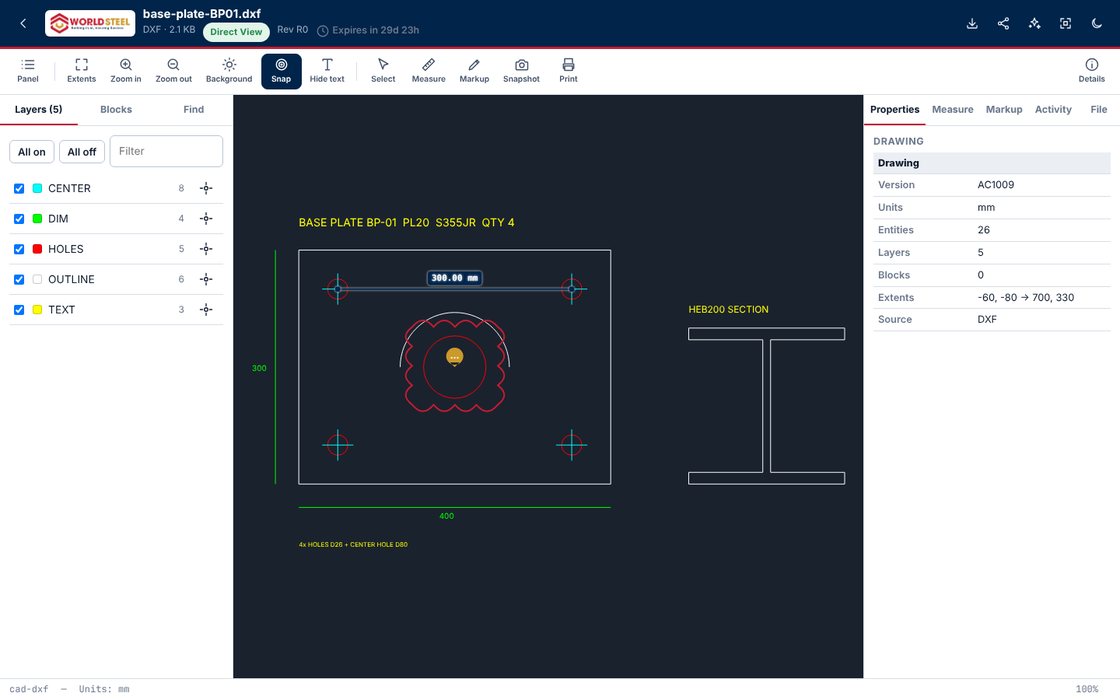

CAD Viewer
Layers, isolation, object properties, coordinates and measurement on DXF drawings.
BIM Viewer
IFC model tree, properties, section planes and steel data (assembly mark, profile, grade).

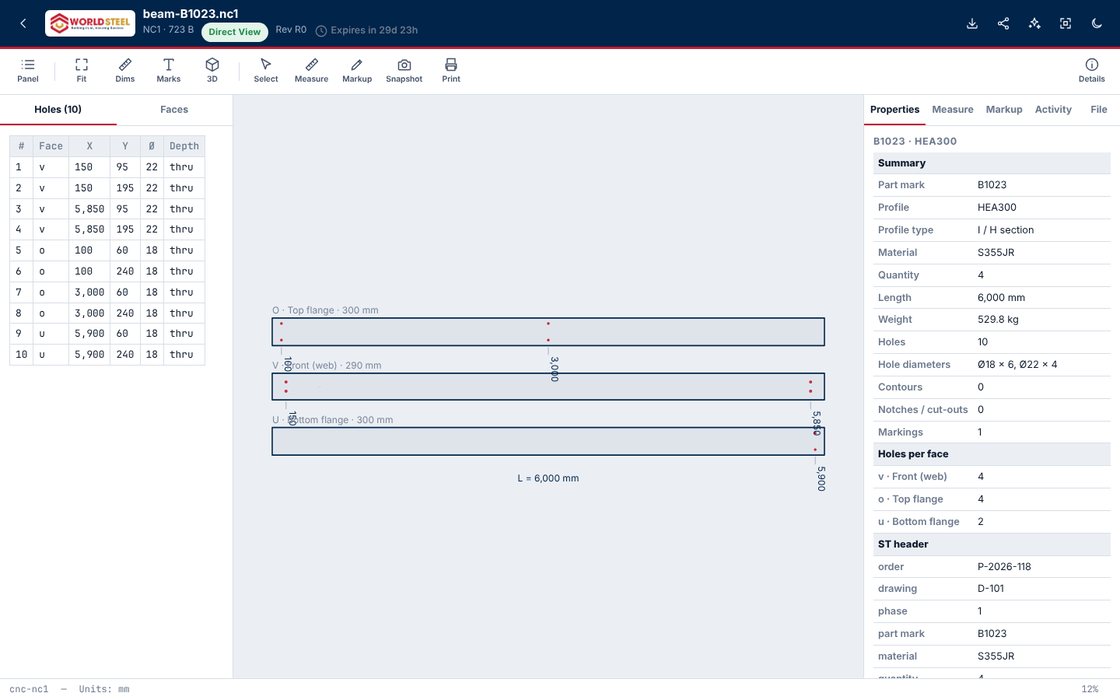

CNC Viewer
DSTV NC1 header, holes, contours, cuts — in 2D faces and 3D.

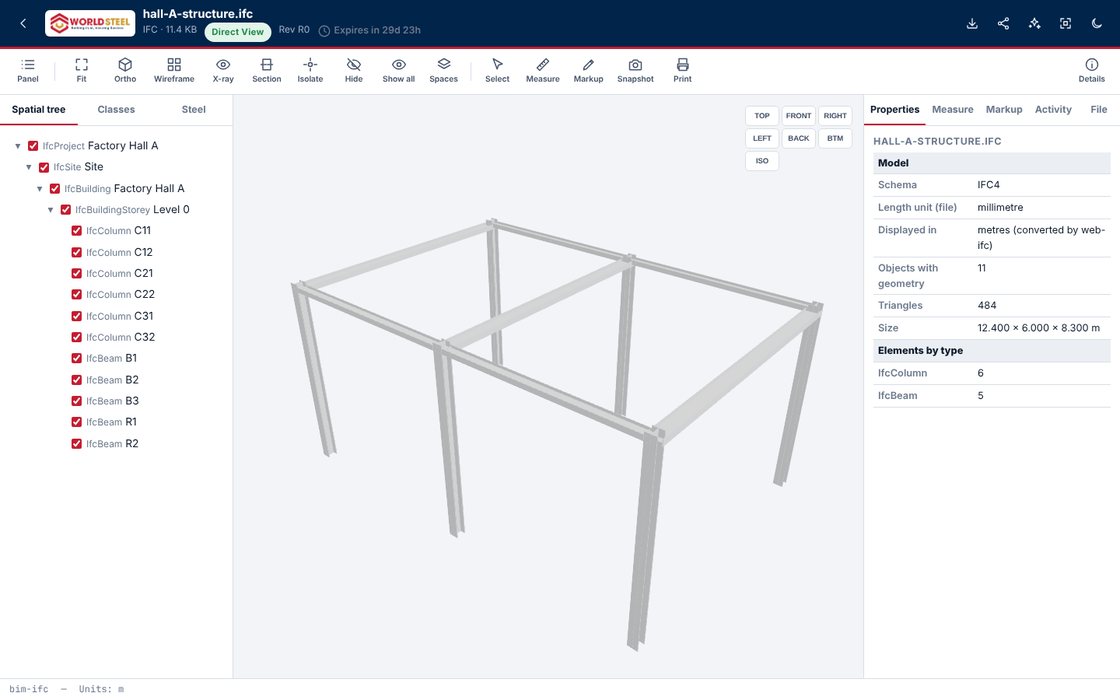

3D Viewer
Orbit, section, wireframe, transparency, orthographic and measurement.

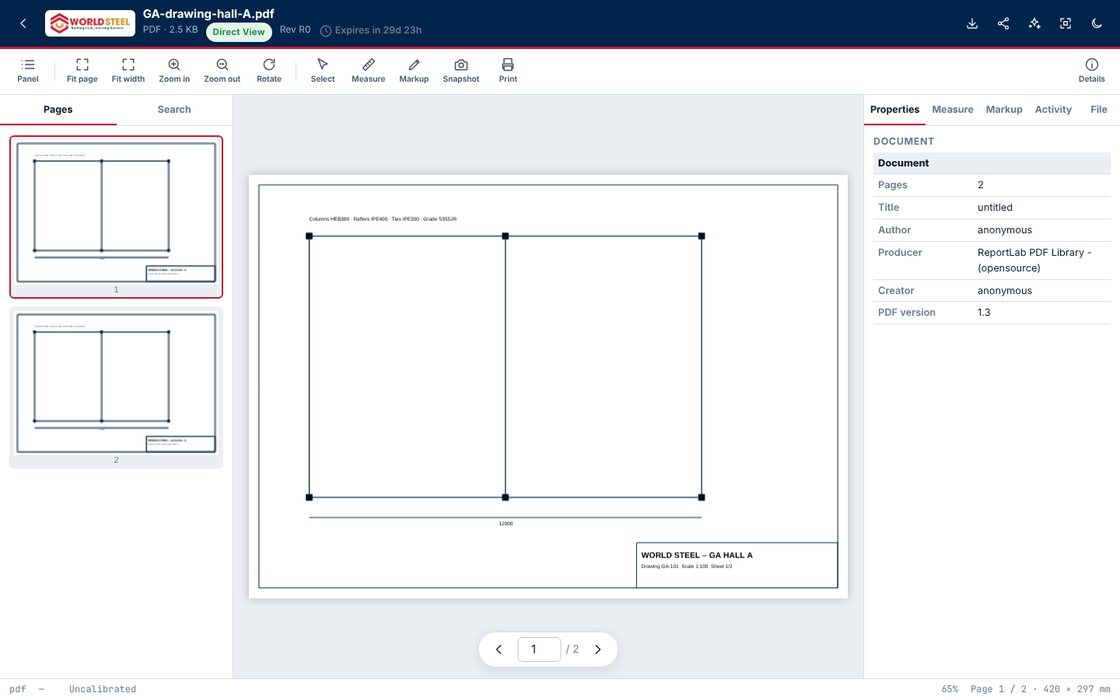

PDF Viewer
Thumbnails, search, calibration-based measurement and markup.

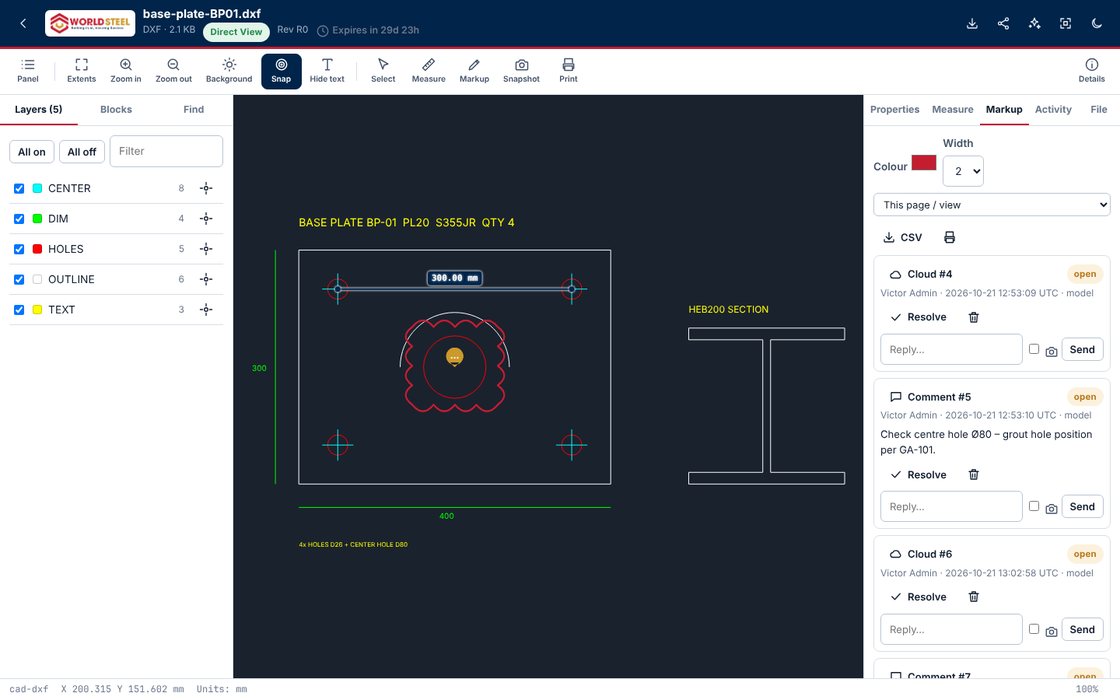

Engineering Measurement
Distance, angle, area, perimeter, radius with unit, precision and calibration status.

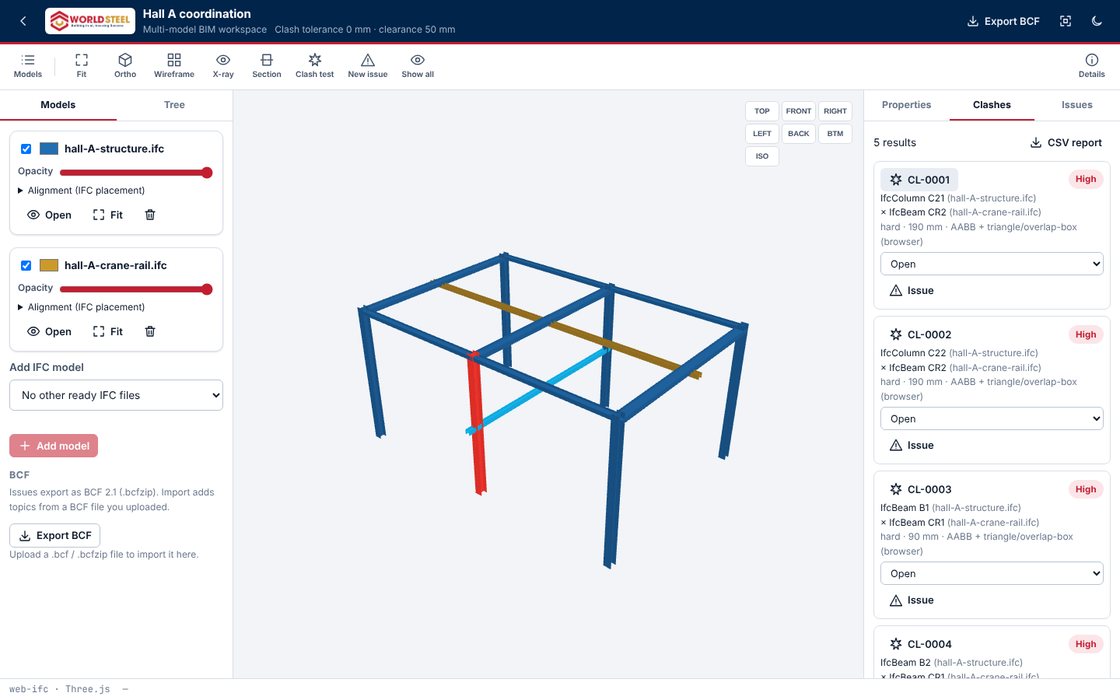

Multi-Model BIM
Federate Architecture, Structure and MEP IFC models with clash checks.

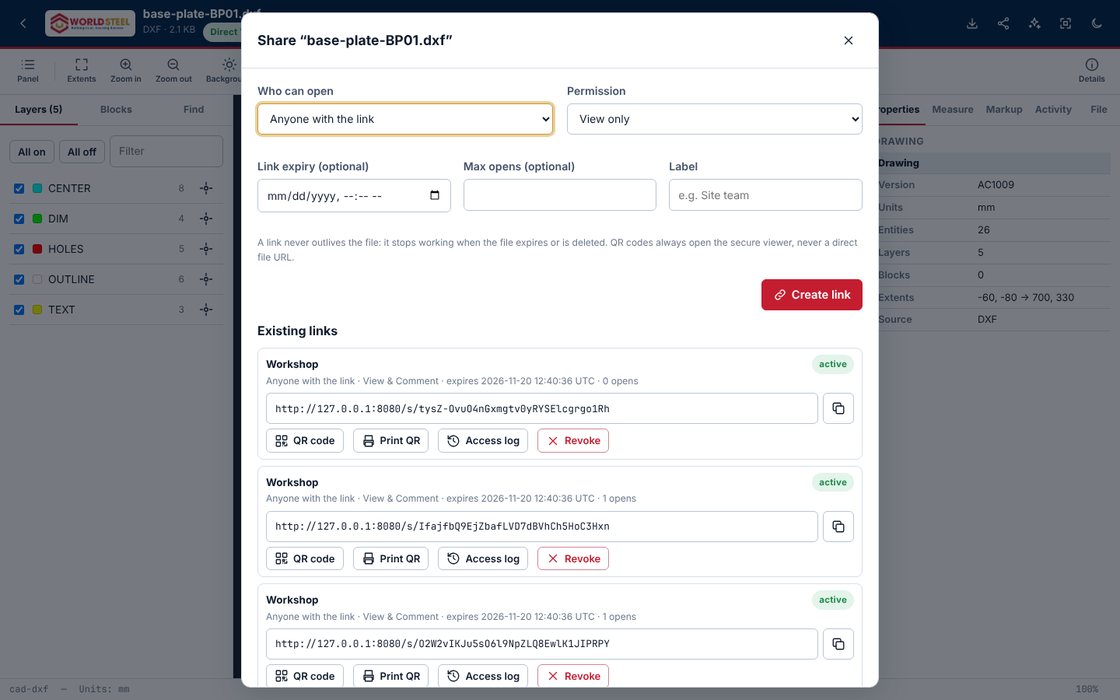

Secure File Sharing
View only, download, comment, password and expiry controls with access logs.
QR Code Sharing
Print QR codes for the shop floor and site — always pointing to the secure viewer.
AI Engineering Assistant
Ask questions about extracted file data, with source references.
Automatic File Expiration
Files expire after 48 hours by default; VIP retention is set per member.
Viewer Showcase
One consistent workspace for every engineering file type.
How It Works
Create Account
Register with your work email.
Login
Sign in securely — two-factor authentication is available.
Upload File
Drag & drop files or folders. Large files upload in resumable chunks.
View & Inspect
The right viewer opens automatically with measurement and markup tools.
Share Online
Create a secure link or QR code with the permissions you choose.
Automatic File Expiration
Files and all derived data are deleted automatically when they expire.
Security by Design
Your drawings and models stay private.
Secure Upload
Authenticated uploads with signature validation and checksums.
Private Storage
Files live outside the web root — there is no public file URL.
Access Control
Owner-only by default; every share is explicit.
Automatic Expiration
Expired files are blocked instantly, then physically deleted.
Secure Sharing
Hashed random tokens, optional password, expiry and access limits.
Audit Logging
Security-relevant actions are logged for review.
Frequently Asked Questions
Is the viewer free?
Yes. Every account is free, with all viewers, measurement, markup and sharing included. There are no paid plans.
Do I need to install CAD or BIM software?
No. Supported viewers run in your browser. Formats that require a commercial SDK or converter are clearly marked.
Can I upload without an account?
No. For security, every upload requires a verified account. Recipients of a share link can view without an account if the owner allows it.
How long are my files kept?
By default files expire 48 hours after upload. The viewer is free; for projects that need longer retention WORLD STEEL can grant a VIP exception.
Can WORLD STEEL staff see my files?
Administrators cannot open private file content by default. Any support access must be explicitly permitted and is audit-logged.
Is DWG supported?
Yes. DWG files (AutoCAD R13 to 2018 formats) are converted to DXF on the server when you upload them and open in the CAD viewer with layers, snapping and measurement. The server needs Node.js 18+ for the built-in converter; the format list shows whether it is active.
Does the AI read my files automatically?
No. AI analysis only runs when you enable it and confirm; the provider and data scope are shown before processing.
Start Viewing Engineering Files Online
Create your free account in less than a minute.
